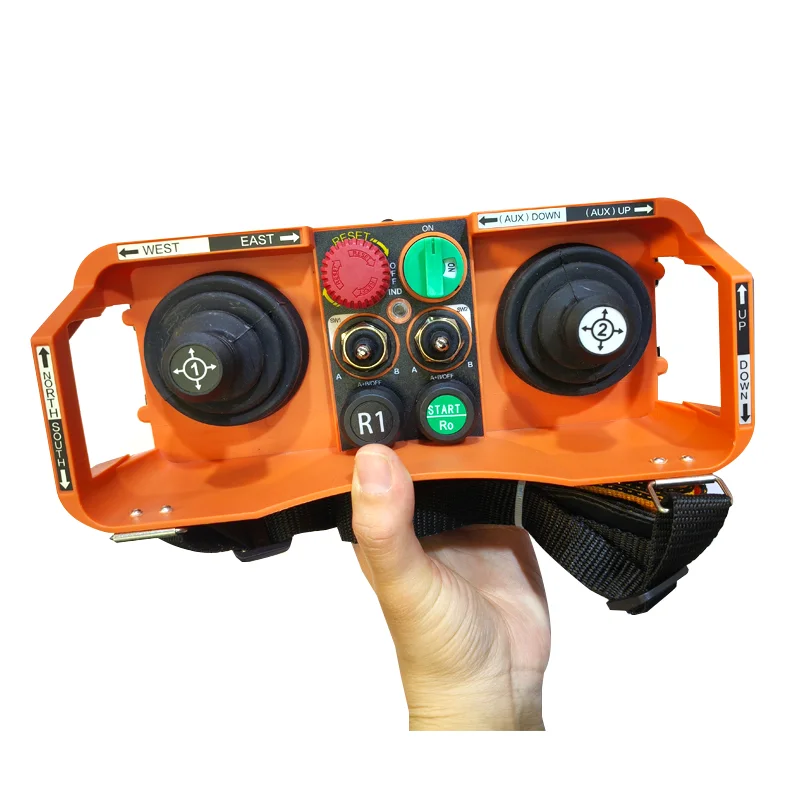

Dual-joystick industrial remote control for cranes and heavy machinery, featuring customizable multi-function control, emergency stop protection, and a rechargeable lithium battery with aviation plug on the DK60 model.
| Item | F24-60 |
|---|---|
| Type | F24-60 |
| Recommended Application | Overhead crane, bridge crane, gantry crane, tower crane, heavy lifting equipment, construction crane |
| Transmitter Antenna | Built-in antenna |
| Receiver Antenna | Built-in antenna / optional external antenna |
| Start Method | Press the start button |
| Emergency Stop | Button / mushroom emergency stop, designed according to EN 13849-1 standard |
| Housing Material | Reinforced nylon plastic |
| Protection Grade | IP65 |
| Control Distance | >100 m; customizable to 500 m |
| Frequency | 315 / 433 / 480 MHz |
| Operating Temperature | -35°C to +75°C |
| Button Life | ≥2,000,000 operations |
| Power Supply | 2 / 4 × AA 1.5V batteries; rechargeable version available as an option |
| Continuous Working Time | Up to 800 hours at room temperature |
| Auto Shutdown | No shutdown by default; 15 min / 30 min auto shutdown can be set by software |
| Button Text | Arrow / English / Chinese / custom text |
| Receiver Output | Relay output, 5A @ 250V |
| Receiver Voltage | AC 220V / AC 380V / AC 48V / AC 36V / AC 110V / DC 12–24V / AC-DC 12–72V |
Real Customer Support Case – Mexico
This video was prepared for a customer in Mexico who needed to replace the joystick module on an industrial wireless remote control.
It shows the actual replacement process, including opening the transmitter housing, disconnecting the internal cables, removing the original joystick assembly, installing the replacement joystick, and reassembling the transmitter.
For compatible joystick remote control models, replacing the joystick module may be a practical option when the control lever is damaged or worn, without replacing the complete remote control system.
JIAYI can provide technical support for:
Replacement procedures may vary by model. Please confirm the transmitter model and joystick configuration before ordering replacement parts.
Send us your remote control model and clear photos of the transmitter, joystick and receiver. Our team can help identify a suitable replacement solution.
Not sure whether this model fits your equipment? Tell us your application requirements, and JIAYI will help you choose the right industrial remote control solution.
24/7 Response
Fast support for model selection, quotation, customization, and technical questions.
Factory Direct Supply
OEM / ODM, private label, receiver matching, button layout customization, and technical modification are available.
Technical Support
We help confirm receiver voltage, control functions, wiring, pairing methods, and replacement options.
