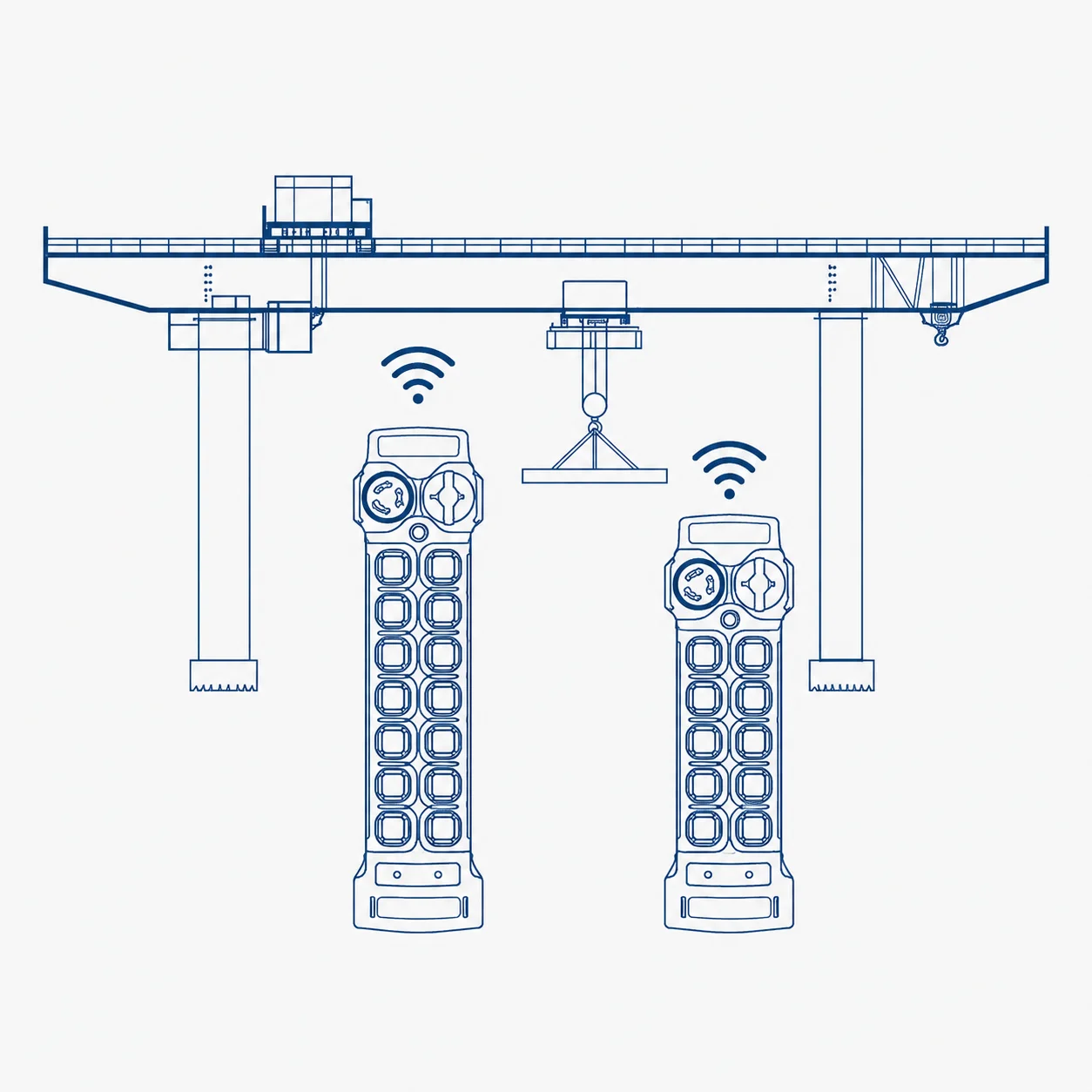

The Q1200 and Q1212 are 12-button industrial wireless remote controls designed for overhead bridge cranes, double-hook cranes, multi-speed traveling cranes and advanced lifting systems.
Q1200 is suitable for single-speed crane control, while Q1212 supports double-speed operation for equipment that requires more flexible lifting, traveling and auxiliary control. This series is ideal for crane systems that need more command channels than standard 8-button or 10-button models.
Built with a Semtech LLCC68 low-power wireless communication chip, the Q Series supports stable signal transmission, hardware frequency hopping and carrier sensing for stronger anti-interference performance. The ergonomic transmitter and silicone anti-drop cover also provide a comfortable grip and better protection in industrial working environments.
| Item | Q1200 | Q1212 |
|---|---|---|
| Type | Q1200 | Q1212 |
| Transmitter Function | 12 single-speed buttons | 12 double-speed buttons |
| Recommended Application | Overhead bridge crane, traveling crane, double-hook crane, multi-function lifting equipment | Multi-speed crane, double-hook crane, overhead bridge crane, advanced traveling crane system |
| Item | Q1200 & Q1212 |
|---|---|
| Transmitter Dimensions | 23.9 × 7.2 × 3.9 cm |
| Transmitter Weight | Approx. 360 g |
| Transmitter Antenna | Built-in antenna |
| Receiver Antenna | Built-in antenna / optional external antenna |
| Start Method | Press the start button |
| Emergency Stop | Mushroom emergency stop button, designed according to EN 13849-1 standard |
| Housing Material | Reinforced nylon plastic |
| Protection Grade | IP65 |
| Control Distance | ≥250 m; custom distance available |
| Frequency | 433 / 480 MHz |
| Operating Temperature | -35°C to +75°C |
| Button Life | ≥2,000,000 operations |
| Power Supply | 2 × AA 1.5V batteries; rechargeable version available as an option |
| Continuous Working Time | Up to 600 hours at room temperature |
| Auto Shutdown | No shutdown by default; 15 min / 30 min auto shutdown can be set by software |
| Button Text | Arrow / English / Chinese / custom text |
| Receiver Output | Relay output, 5A @ 250V |
| Receiver Voltage | DC 12–48V, AC 28–465V |
JYRDI Q Series is available with TI CC1125 or LLCC68 radio platforms. Both are designed for reliable industrial crane control, while each platform offers different communication characteristics for different operating environments.
TI CC1125
Stable industrial communication with strong interference resistance, suitable for demanding factory environments with cranes, motors and variable-frequency drives.
LLCC68
Flexible frequency management for multi-remote environments, larger workshops and applications requiring extended operating range.
Not sure which version to choose?
Tell us your crane type, operating distance and number of remote systems, and we will recommend the suitable configuration.
