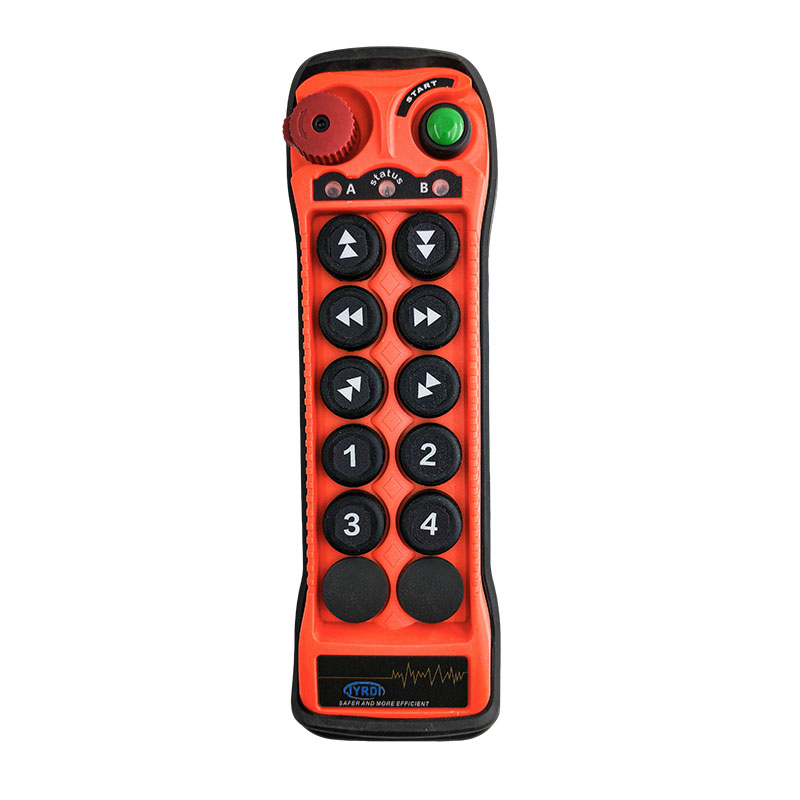

The Q1000 and Q1010 are 10-button industrial wireless remote controls designed for overhead bridge cranes, double-hook cranes, multi-speed traveling cranes and advanced lifting systems.
Q1000 is suitable for single-speed crane control, while Q1010 supports double-speed operation for equipment that requires more flexible lifting, traveling and auxiliary control. This series is ideal for crane systems that need more command channels than standard 6-button or 8-button models.
Built with a Semtech LLCC68 low-power wireless communication chip, the Q Series supports stable signal transmission, hardware frequency hopping and carrier sensing for stronger anti-interference performance. The ergonomic transmitter and silicone anti-drop cover also provide a comfortable grip and better protection in industrial working environments.
| Item | Q1000 | Q1010 |
|---|---|---|
| Type | Q1000 | Q1010 |
| Transmitter Function | 10 single-speed buttons | 10 double-speed buttons |
| Recommended Application | Overhead bridge crane, traveling crane, double-hook crane, multi-function lifting equipment | Multi-speed crane, double-hook crane, overhead bridge crane, advanced traveling crane system |
| Item | Q1000 & Q1010 |
|---|---|
| Transmitter Dimensions | 23.9 × 7.2 × 3.9 cm |
| Transmitter Weight | Approx. 360 g |
| Transmitter Antenna | Built-in antenna |
| Receiver Antenna | Built-in antenna / optional external antenna |
| Start Method | Press the start button |
| Emergency Stop | Mushroom emergency stop button, designed according to EN 13849-1 standard |
| Housing Material | Reinforced nylon plastic |
| Protection Grade | IP65 |
| Control Distance | ≥250 m; custom distance available |
| Frequency | 433 / 480 MHz |
| Operating Temperature | -35°C to +75°C |
| Button Life | ≥2,000,000 operations |
| Power Supply | 2 × AA 1.5V batteries; rechargeable version available as an option |
| Continuous Working Time | Up to 600 hours at room temperature |
| Auto Shutdown | No shutdown by default; 15 min / 30 min auto shutdown can be set by software |
| Button Text | Arrow / English / Chinese / custom text |
| Receiver Output | Relay output, 5A @ 250V |
| Receiver Voltage | DC 12–48V, AC 28–465V |
Not sure whether this model fits your equipment? Tell us your application requirements, and JIAYI will help you choose the right industrial remote control solution.
