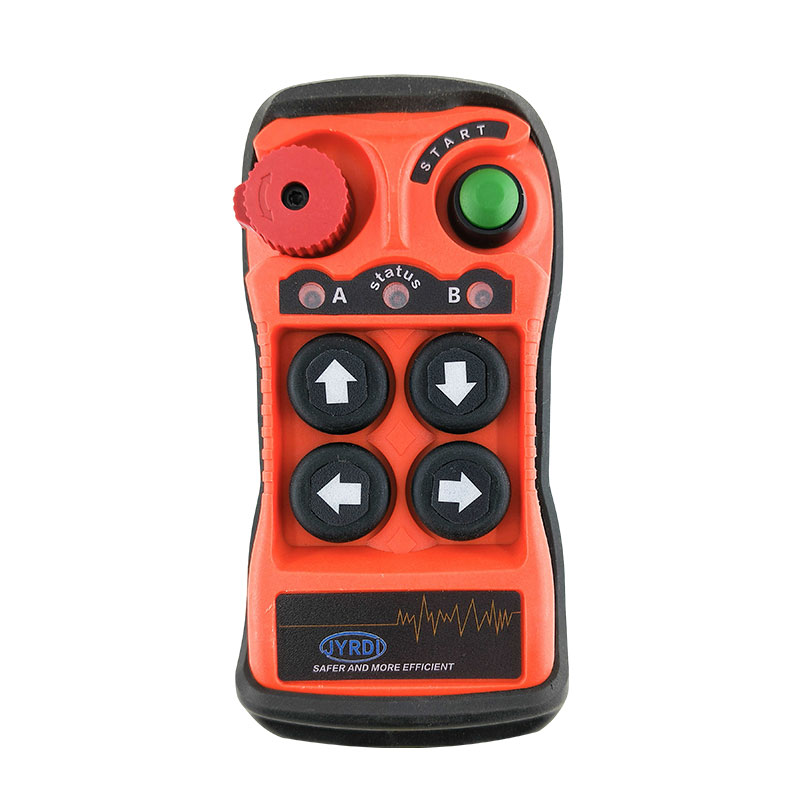

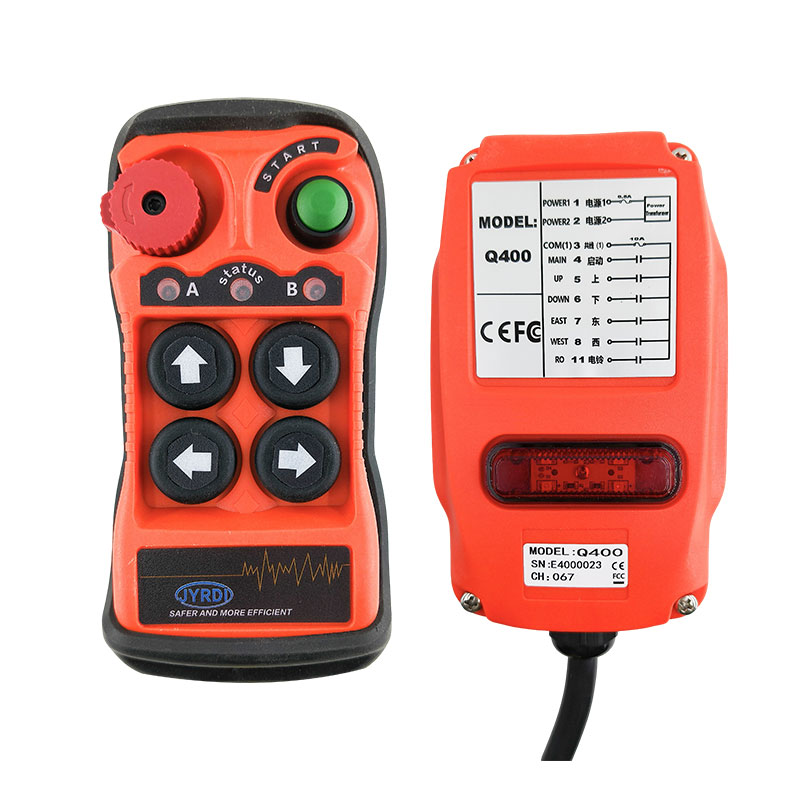

The Q400 and Q404 are compact, four-button industrial wireless remote controllers designed for winches, mini electric hoists, rail cranes, trolley lifting systems, and small workshop lifting equipment. Both models use the same housing, receiver system, and wireless control capabilities. The Q400 is suitable for single-speed directional control, while the Q404 supports dual-speed button operation, making it suitable for applications requiring more flexible lifting control.
With a Semtech LLCC68 low-power wireless chip, hardware frequency hopping and carrier sensing, the Q Series helps improve signal stability, reduce interference and lower overall power consumption. The ergonomic transmitter and silicone anti-drop cover make it more durable and comfortable for industrial operation.
| Item | Q400 | Q404 |
|---|---|---|
| Type | Q400 | Q404 |
| Transmitter Function | 4 single-speed buttons | 4 double-speed buttons |
| Recommended Application | Winch, hoist, track crane, lift control | Double-speed hoist, track crane, trolley lifting system |
| Item | Q400 & Q404 |
|---|---|
| Transmitter Dimensions | 14.5 × 7.5 × 3.8 cm |
| Transmitter Weight | Approx. 240 g |
| Transmitter Antenna | Built-in antenna |
| Receiver Antenna | Built-in antenna / optional external antenna |
| Start Method | Press the start button |
| Emergency Stop | Mushroom emergency stop button, designed according to EN 13849-1 standard |
| Housing Material | Reinforced nylon plastic |
| Protection Grade | IP65 |
| Control Distance | ≥250 m; custom distance available |
| Frequency | 433 / 480 MHz |
| Operating Temperature | -35°C to +75°C |
| Button Life | ≥2,000,000 operations |
| Power Supply | 2 × AA 1.5V batteries; rechargeable version available as an option |
| Continuous Working Time | Up to 600 hours at room temperature |
| Auto Shutdown | No shutdown by default; 15 min / 30 min auto shutdown can be set by software |
| Button Text | Arrow / English / Chinese / custom text |

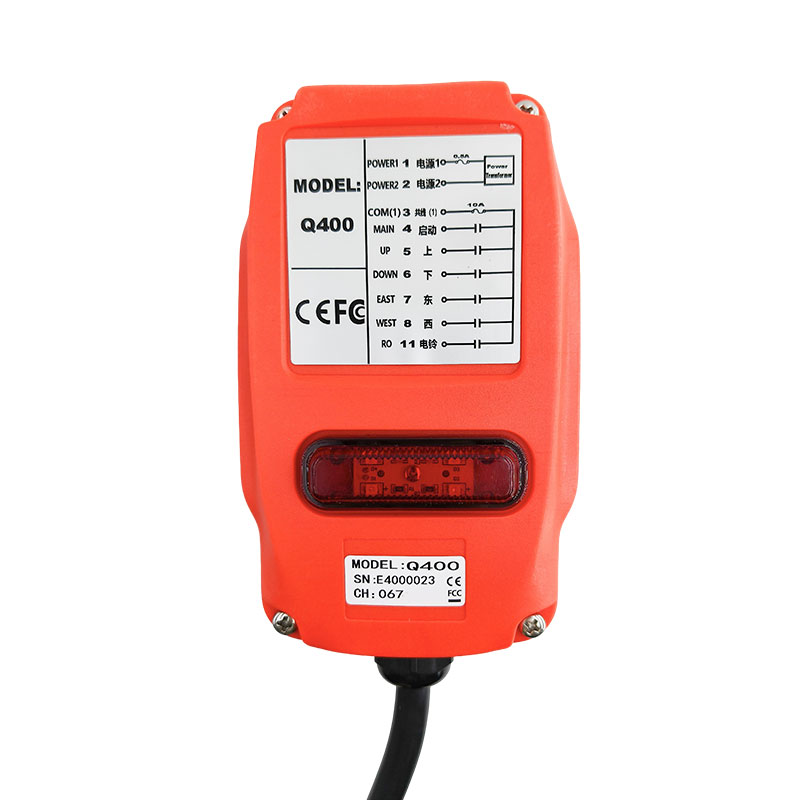

| Receiver Output | Relay output, 5A @ 250V |
| Receiver Voltage | DC 12–48V, AC 28–465V |
The Q400/Q404 Series is one option for industrial lifting equipment. If your application requires additional control functions, a different speed configuration, or specific receiver wiring, JIAYI offers a wider selection of crane remote control systems for overhead cranes, electric hoists, and other lifting applications.
Compare available configurations to find a suitable solution for your equipment.
JYRDI Q Series is available with TI CC1125 or LLCC68 radio platforms. Both are designed for reliable industrial crane control, while each platform offers different communication characteristics for different operating environments.
TI CC1125
Stable industrial communication with strong interference resistance, suitable for demanding factory environments with cranes, motors and variable-frequency drives.
LLCC68
Flexible frequency management for multi-remote environments, larger workshops and applications requiring extended operating range.
Not sure which version to choose?
Tell us your crane type, operating distance and number of remote systems, and we will recommend the suitable configuration.
Not sure whether this model fits your equipment? Tell us your application requirements, and JIAYI will help you choose the right industrial remote control solution.
24/7 Response
Fast support for model selection, quotation, customization, and technical questions.
Factory Direct Supply
OEM / ODM, private label, receiver matching, button layout customization, and technical modification are available.
Technical Support
We help confirm receiver voltage, control functions, wiring, pairing methods, and replacement options.
