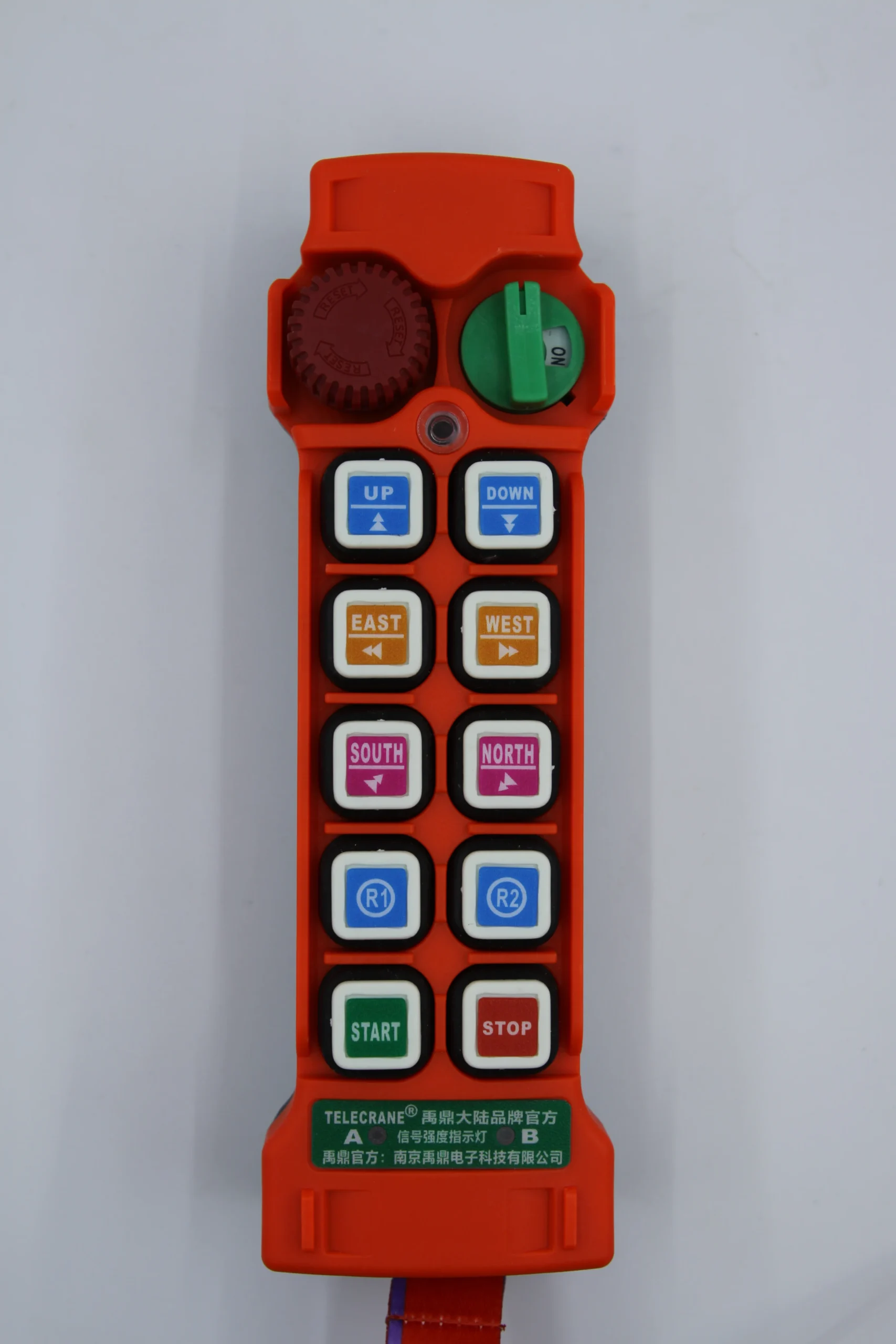

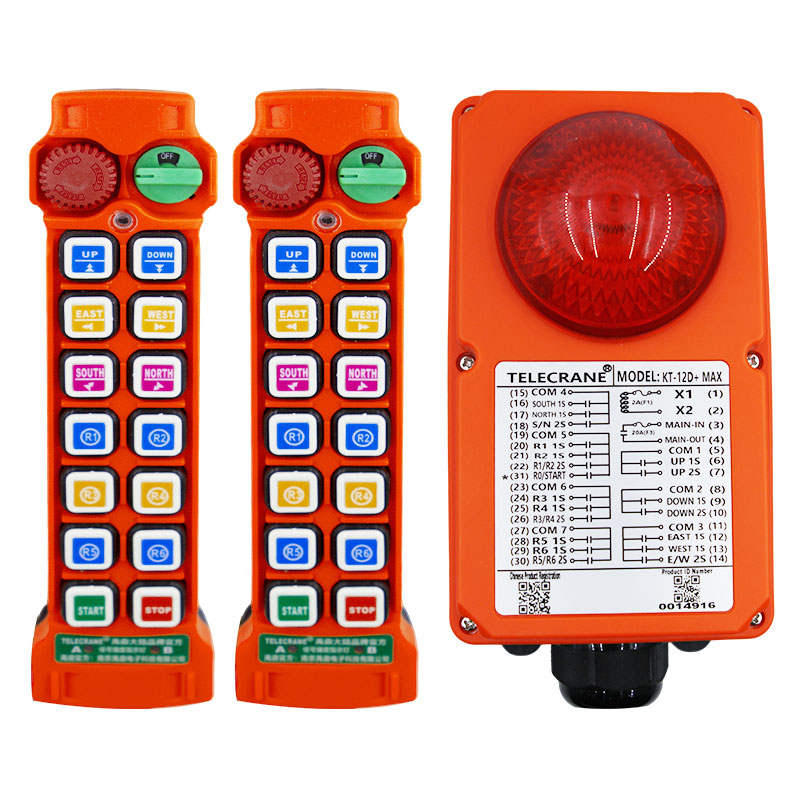

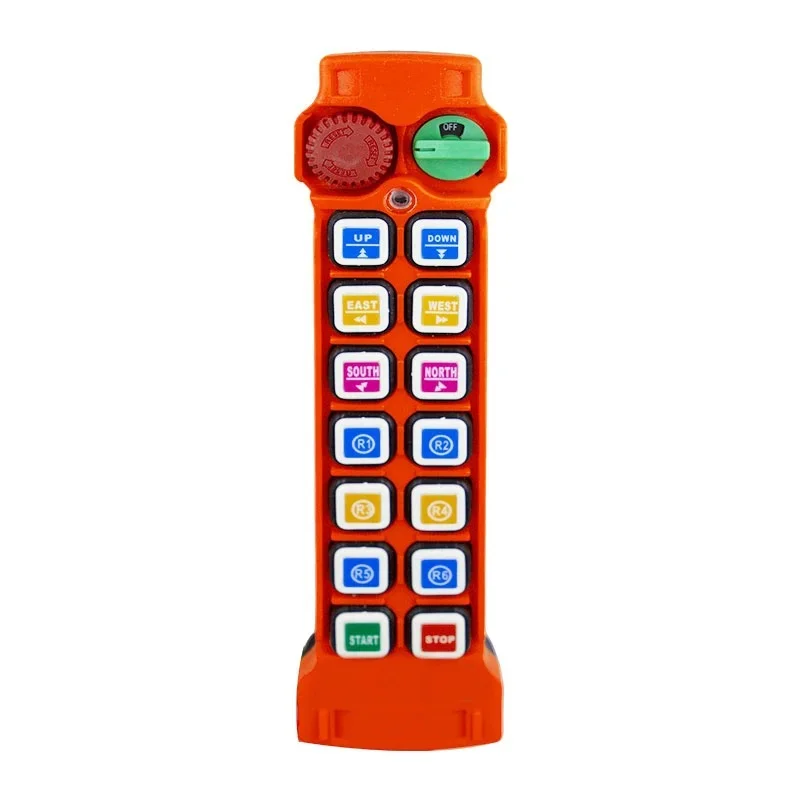

The KT Series industrial wireless remote control is designed for demanding lifting and material handling applications, including hoists, winches, overhead cranes, bridge cranes and tower cranes.
Built with Texas Instruments TI CC1120 / CC1125 ultra-low-power wireless communication chips, the KT Series provides high receiver sensitivity, strong anti-interference performance and stable wireless transmission in complex industrial environments.
With IP65 protection, reinforced nylon housing, long battery life and customizable receiver voltage options, the KT Series is suitable for crane manufacturers, equipment upgrade projects, maintenance companies and industrial remote control replacement applications.
Employing Texas Instruments’ (TI) latest ultra-low-power CC1120/1125 control chip, this solution boasts high sensitivity, strong anti-interference capabilities, and low power consumption, making it the best wireless control solution currently available in the industrial remote control industry.
| Type | KT-6D | KT-8D | KT-10D | KT-12D |
| Transmitter | 6 double | 8 double | 10 single | 12 double |
| Function | -speed | -speed | -speed | -speed |
| buttons | buttons | buttons | buttons | |
| Transmitter | 195 x 61 x 44MM | 240 x 61 x 44 mm | ||
| Dimensions | ||||
| Transmitter | 255g | |||
| Weight | ||||
| Transmitter | Inside | |||
| Antenna | ||||
| Receiver | Inside / optional external antenna | |||
| Antenna | ||||
| Start | Press the start button | |||
| Emergency | Mushroom conforms to EN13849-1 standard | |||
| Housing | Reinforced nylon plastic | |||
| IP class | IP65 | |||
| Distance | ≥ 250 meters / can be customized 500 meters / 100 meters | |||
| Frequency | 433/480MHZ | |||
| Temperature | -35°C— +75°C | |||
| Button life | ≥2,000,000 times | |||
| Power supply | 4 AA battery (1.5V),rechargable acceptable,with a dedicated charging version available as an option | |||
| Continuous | 800 hours (at room temperature) | |||
| working time | ||||
| Automatic | no shutdown / software can be set for 15 minutes, 30 minutes | |||
| shutdown | ||||
| Button | Arrow/English/Chinese/Others | |||
| Text | ||||

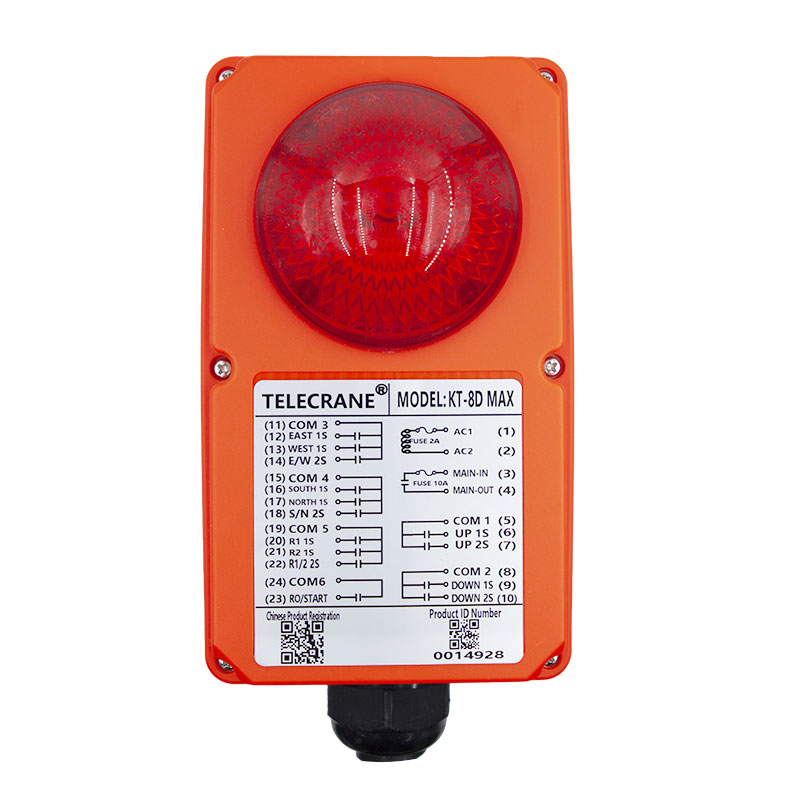

| Receiver | Relay 5A@250v | |||
| Output | ||||
| Receiver | DC 12-48V,DC24-465V | |||
| Voltage | ||||
FAQ:
Q: What makes the KT Series crane remote control suitable for heavy machinery?
A: The KT Series features reinforced anti-collision casing, high-sensitivity pushbuttons, and advanced anti-interference signal transmission suitable for harsh factory floors.
Q: Can the KT Series remote control be configured for single or double-speed hoists?
A: Yes, the KT Series offers models with single-speed and two-speed pushbuttons to match single or multi-speed electric hoists and overhead cranes.
Q: How easy is it to replace a damaged transmitter in the KT Series?
A: The KT Series supports quick transmitter pairing using e-pairing software or crystal-free frequency selection, minimizing equipment downtime.
Not sure whether this model fits your equipment? Tell us your application requirements, and JIAYI will help you choose the right industrial remote control solution.
24/7 Response
Fast support for model selection, quotation, customization, and technical questions.
Factory Direct Supply
OEM / ODM, private label, receiver matching, button layout customization, and technical modification are available.
Technical Support
We help confirm receiver voltage, control functions, wiring, pairing methods, and replacement options.
