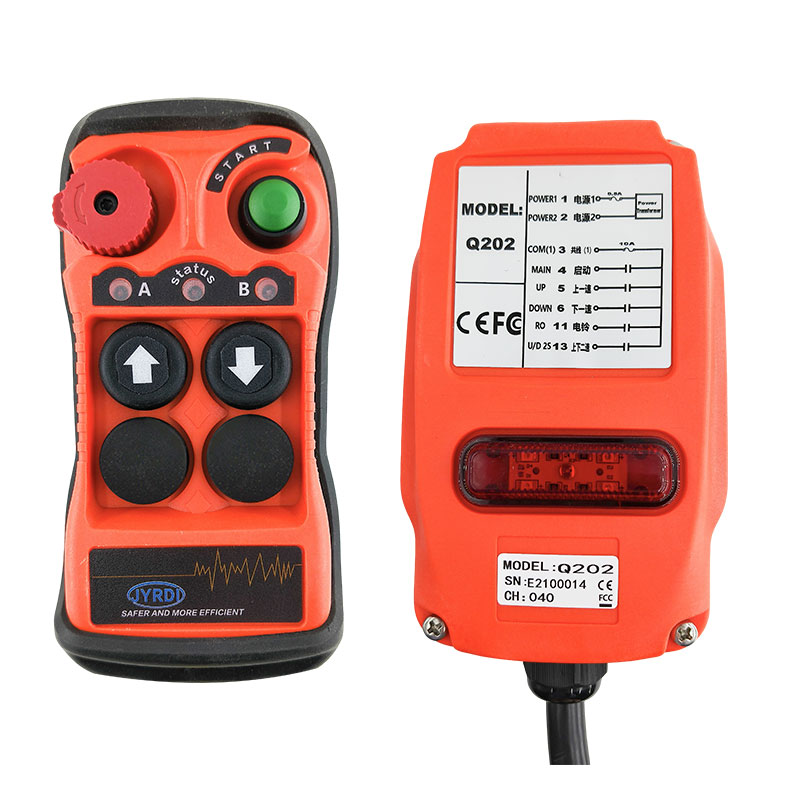

The Q200 and Q202 are compact, two-button industrial wireless remote controllers designed for tailgate lifts, winches, mini electric hoists, and simple lifting equipment. The Q200 is suitable for single-speed lifting control, while the Q202 supports dual-speed button operation, ideal for applications requiring more flexible lifting control.
Both models feature stable wireless transmission, IP65 protection rating, ruggedized nylon housing, mushroom-shaped emergency stop button, and a stable wide-voltage output receiver.
The Q Series uses a Semtech LLCC68 low-power wireless communication chip with hardware-level frequency hopping and carrier sensing. This helps improve anti-interference performance, reduce unnecessary wake-up cycles and support more stable wireless control.
The transmitter is designed with an ergonomic shape for comfortable grip, and comes with a silicone anti-drop cover for better protection in industrial working environments.
| Item | Q200 | Q202 |
|---|---|---|
| Type | Q200 | Q202 |
| Transmitter Function | 2 single-speed buttons | 2 double-speed buttons |
| Recommended Application | Simple up/down control, tail lift, winch, small hoist | Double-speed lifting control, hoist, winch, lifting equipment |
| Item | Q200 & Q202 |
|---|---|
| Transmitter Dimensions | 14.5 × 7.5 × 3.8 cm |
| Transmitter Weight | Approx. 240 g |
| Transmitter Antenna | Built-in antenna |
| Receiver Antenna | Built-in antenna / optional external antenna |
| Start Method | Press the start button |
| Emergency Stop | Mushroom emergency stop button, designed according to EN 13849-1 standard |
| Housing Material | Reinforced nylon plastic |
| Protection Grade | IP65 |
| Control Distance | ≥250 m; custom distance available |
| Frequency | 433 / 480 MHz |
| Operating Temperature | -35°C to +75°C |
| Button Life | ≥2,000,000 operations |
| Power Supply | 2 × AA 1.5V batteries; rechargeable version available as an option |
| Continuous Working Time | Up to 600 hours at room temperature |
| Auto Shutdown | No shutdown by default; 15 min / 30 min auto shutdown can be set by software |
| Button Text | Arrow / English / Chinese / custom text |
| Receiver Output | Relay output, 5A @ 250V |
| Receiver Voltage | DC 12–48V, AC 28–465V |
JYRDI Q Series is available with TI CC1125 or LLCC68 radio platforms. Both are designed for reliable industrial crane control, while each platform offers different communication characteristics for different operating environments.
TI CC1125
Stable industrial communication with strong interference resistance, suitable for demanding factory environments with cranes, motors and variable-frequency drives.
LLCC68
Flexible frequency management for multi-remote environments, larger workshops and applications requiring extended operating range.
Not sure which version to choose?
Tell us your crane type, operating distance and number of remote systems, and we will recommend the suitable configuration.
